Central Venous Catheters (CVC Triple Lumen): ICU Procurement Guide
Multi-infusion therapy in intensive care requires dedicated lumens for vasopressors, TPN, and blood sampling. How to source complete Seldinger CVC kits at direct factory cost.
Key Summary & AI Takeaways
Sourcing triple-lumen central venous catheter (CVC) kits for Mexico. COFEPRIS sanitary registration, Seldinger insertion components, and Manzanillo port shipping.
Quick Sourcing Summary: CVC Kit Procurement for Mexico
Triple-lumen central venous catheters entering Mexico must be manufactured from thermosensitive, radiopaque polyurethane that softens at body temperature (37°C) to prevent vascular endothelial trauma. Primary kit components—including the J-tip guidewire, introducer needle, dilator, and scalpel—must be packaged together in a single sterile tray. Importation requires a Registro Sanitario from COFEPRIS under Class III medical device rules.
Anatomical & Fluid Dynamics of Triple-Lumen Access
In critical care settings, catheter design must prevent drug precipitation while minimizing the risk of Catheter-Related Bloodstream Infections (CRBSI).
The separation of the three independent internal channels prevents incompatible medications from mixing before entering the superior vena cava.
| Lumen Channel | Gauge Rating | Color Code | Prime Fluid Volume | Standard ICU Indication |
|---|---|---|---|---|
| Distal (Terminal Tip) | 16G | Brown | ~0.40 ml | CVP venous pressure transducing, blood transfusions, high-viscosity colloids |
| Medial (Middle Exit) | 18G | Blue | ~0.35 ml | Dedicated Total Parenteral Nutrition (TPN) to prevent septic seeding |
| Proximal (Rear Exit) | 18G | White | ~0.35 ml | Continuous vasoactive inotrope titration (norepinephrine), routine blood draws |
Manshav Impex catheters are extruded from medical-grade aliphatic polyurethane with high barium sulfate loading, providing sharp, unambiguous visualization along the entire catheter length on post-insertion chest X-rays.
What Belongs in a Complete Seldinger Insertion Kit?
Mexican ICU head nurses and hospital tender panels look closely at kit completeness. Missing accessories cause procedural delays, compromise sterile field integrity, and lead to product rejections.

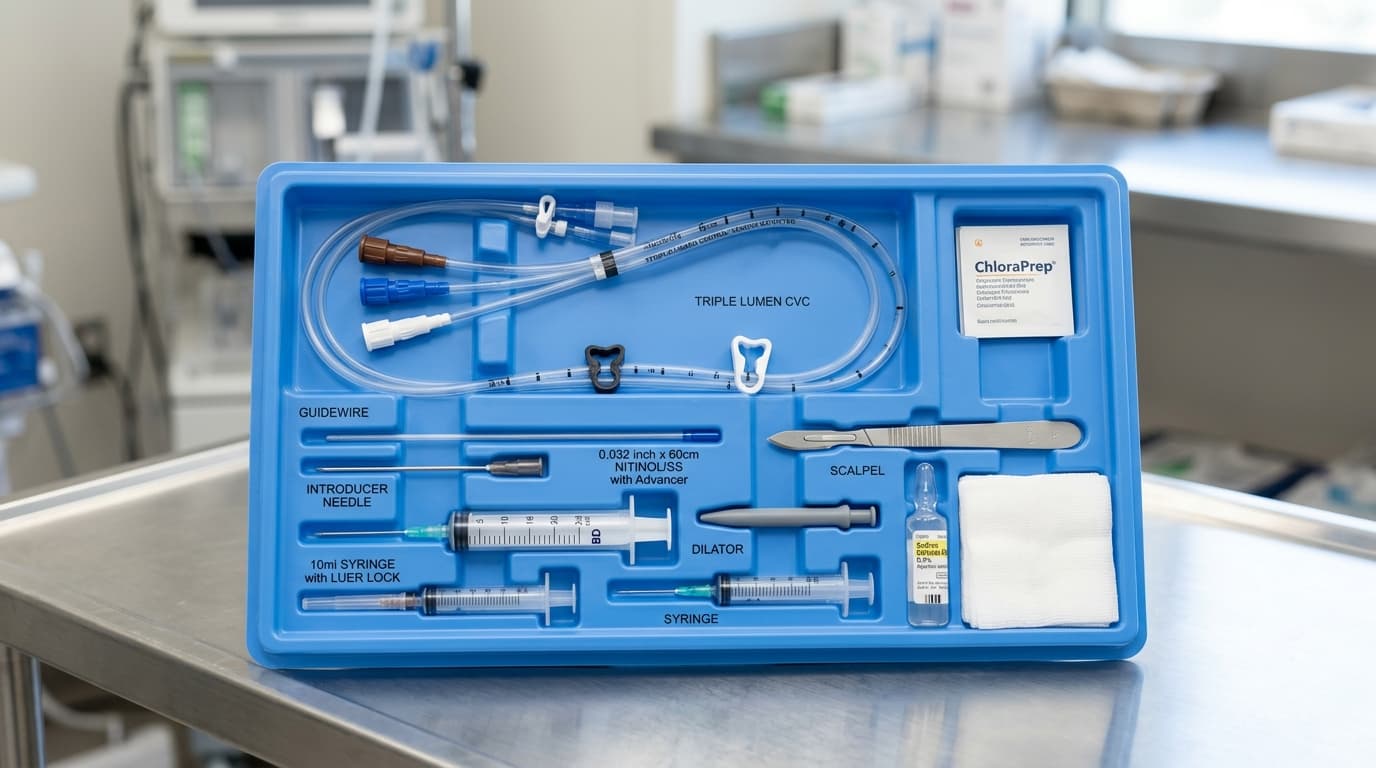

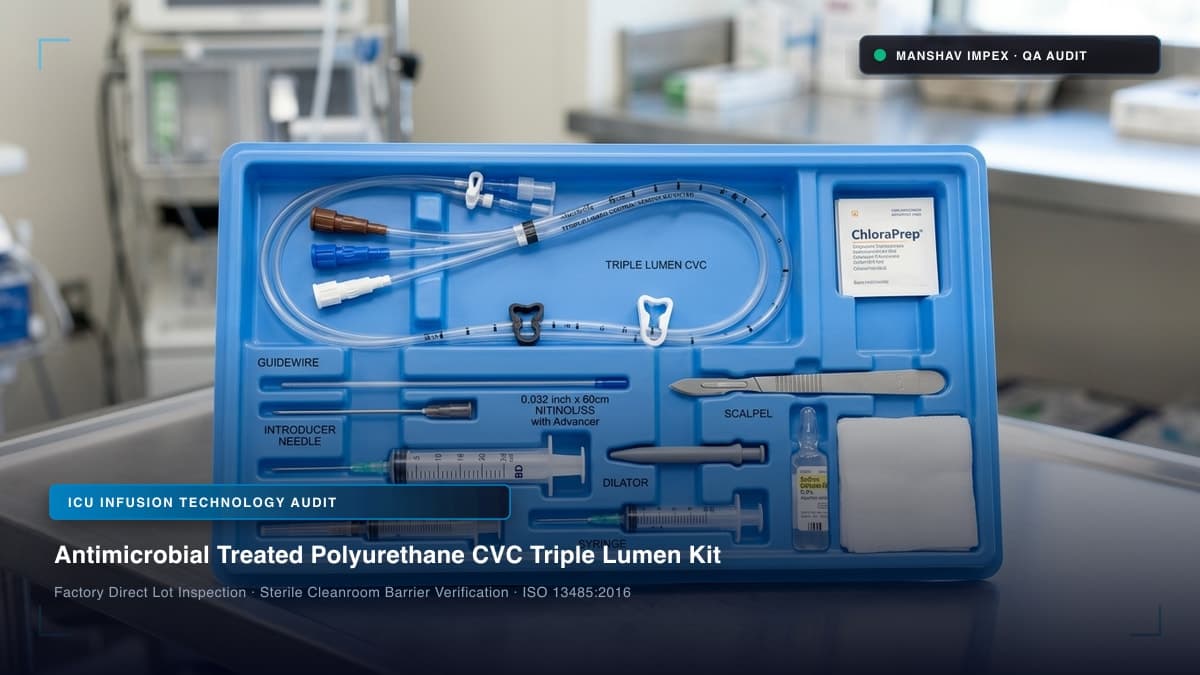

A complete Manshav Impex Seldinger CVC tray includes: - Polyurethane Central Catheter: 7 French (Fr) outside diameter; 20 cm length for internal jugular/subclavian placement, or 30 cm for femoral cannulation. - Nitinol / Stainless Steel J-Tip Guidewire: 0.032" or 0.035" diameter with depth marks and an ergonomic thumb-advancer dispenser. - Y-Shaped Introducer Needle: 18G needle with a back-bleed prevention valve, allowing guidewire passage directly through syringe barrels without disconnecting. - Vessel Dilator: High-density, tapered polypropylene dilator for smooth tissue tract formation. - Accessories: Suture fixation wings, catheter clamp, safety scalpel blade #11, and needle-free injection site caps.
COFEPRIS Registration Pathways for Mexican Importers
Under Mexican health regulations, central venous catheters are classified as Class III (Clase III - Insumos para la Salud) devices because of their direct, long-term contact with the central circulatory system.
Importers must work through an established Mexican legal entity holding an active Sanitary Operating License (*Licencia Sanitaria*) and an authorized Responsible Pharmacist (*Responsable Sanitario*).
Key dossier requirements for the COFEPRIS submission include: 1. Quality Management Validation: ISO 13485:2016 certificate audited by an accredited registrar. 2. Apostilled Certificate of Free Sale (CFS): Legalized under the Hague Convention. 3. Biocompatibility Testing: Complete ISO 10993 test portfolio including cytotoxicity (Part 5), hemocompatibility and thrombogenicity (Part 4), systemic toxicity (Part 11), and pyrogenicity testing (LAL endotoxin < 0.25 EU/ml). 4. Mechanical Testing Reports: Tensile bond strength between catheter hub and shaft, guidewire tensile break limits, and burst pressure testing (ISO 10555-1 and ISO 10555-3). 5. Spanish Labelling Artwork: Full compliance with NOM-137-SSA1-2008, displaying registration numbers, sterility expiry, batch numbers, and precautions in clear Spanish.
Practical Sourcing Insight
Procurement Note
The J-tip guidewire is often the deciding factor in clinical evaluations. Cheap CVC kits use stiff stainless steel wire prone to kink if it meets vessel resistance. Supplying kink-resistant Superelastic Nitinol core wires ensures smooth passage through tortuous vessels, winning strong support from interventional radiologists and ICU teams.
Supplying Critical Care Consumables to Mexico?
Manshav Impex provides hospital distributors and importers in Mexico with high-grade central venous catheter kits, IV cannulas, and surgical disposables supported by complete technical dossiers. Contact our Latin America regulatory and trade desk.
---
"In central venous cannulation, procedural success comes down to the guidewire’s smooth track and the catheter’s softening curve inside the vein."
---
Frequently asked questions
Why is polyurethane preferred over silicone for acute ICU central venous catheters?
Polyurethane offers higher tensile strength than silicone, allowing for thinner catheter walls and larger internal lumen flow rates for the same 7 French outer diameter. It is stiff at room temperature for easy insertion over the guidewire, then softens at 37°C inside the bloodstream to reduce vascular wall irritation.
What transit times apply to ocean shipments from India to Mexican ports?
Direct container vessels from Port Mundra or Nhava Sheva sail through the Pacific corridor to Puerto de Manzanillo (Colima) or Lázaro Cárdenas in **24 to 30 days**. Air cargo shipments from Mumbai (BOM) reach Mexico City International Airport (MEX) within **48 to 72 hours**.
Can CVC kits be supplied with antimicrobial (chlorhexidine/silver sulfadiazine) coatings?
Yes. For specialized hospital tenders focused on preventing catheter-related bloodstream infections (CRBSI), antimicrobial-impregnated polyurethane lines can be provided with validated elution profiles.
What packaging protects CVC kits during maritime transport?
Every kit is housed in a rigid thermoformed plastic organizer tray sealed with a medical-grade Tyvek peel lid, then boxed 10 kits per shelf carton and 40 kits per heavy-duty master export carton lined with moisture barriers.
Are pediatric and neonatal CVC configurations available?
Yes, we supply 4 Fr and 5 Fr double-lumen CVC kits for pediatric care, as well as 1.9 Fr to 3 Fr single/double-lumen polyurethane micro-lines for neonatal intensive care units (NICU). ---
