Urine Drainage Bags & Hourly Meter Systems: Hospital Procurement Guide

In critically ill intensive care and post-operative patients, monitoring urine output down to 1ml per hour is vital for detecting acute kidney injury (AKI) and septic shock. However, opening urinary drainage lines to take samples or empty fluid is the primary pathway for ascending bacterial colonization. Hospitals worldwide are switching to closed urine drainage systems equipped with needleless sampling ports and non-return flutter valves. Here is what separates standard ward bags from high-precision ICU urine meters.

Urine Drainage Bags & Hourly Meter Systems: Hospital Procurement Guide
Key Summary & AI Takeaways

Catheter-Associated Urinary Tract Infections (CAUTIs) cost hospitals up to $13,000 per episode. Why closed drainage systems with anti-reflux valves are mandatory in modern tenders.

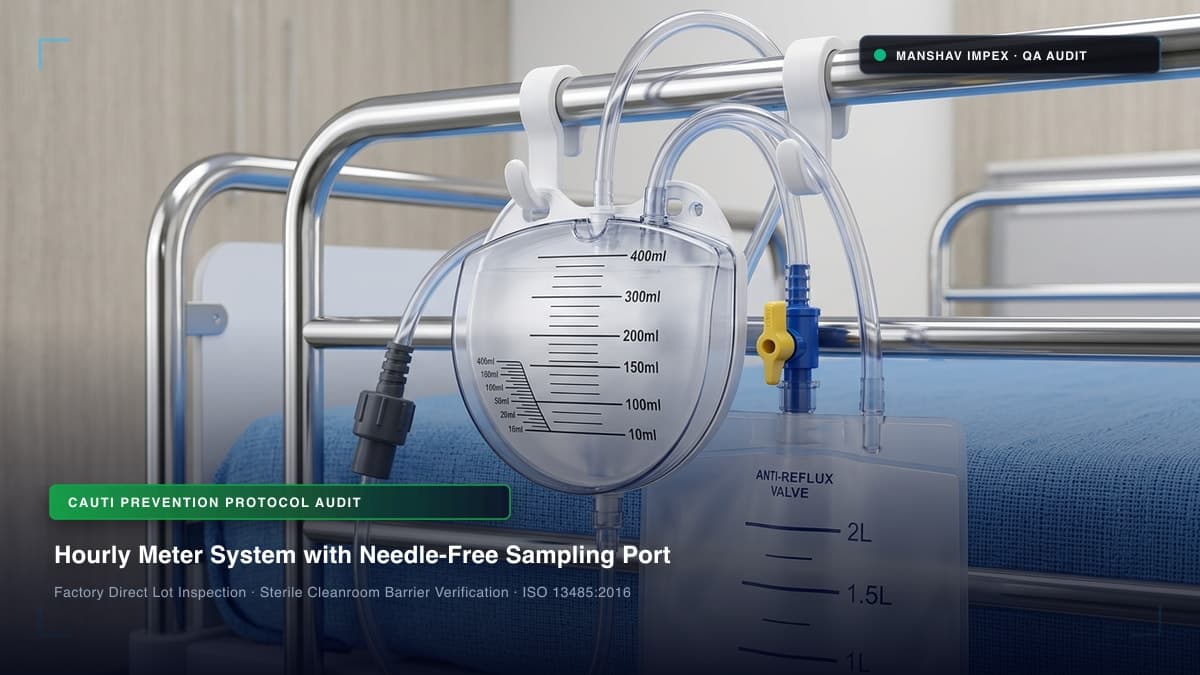

Closed Urine Drainage Bag and Hourly Urine Meter
2000ml closed drainage bag featuring graduated hourly meter chamber and anti-reflux valve.
Tender Quality Check

Cheap bottom drainage taps leak or stick after three openings, forcing nursing staff to replace the entire catheter line. Insist on silicone-lubricated cross T-taps or push-pull drain valves. [Request an export quote](/request-quote) for complete catheterization packs.

System Comparison: Standard 2000ml Bag vs Hourly Urine Meter

FeatureStandard Ward Bag (2000ml)Precision ICU Urine Meter (400ml/500ml)Economy Unbranded Bag
Target Clinical AreaGeneral surgical/medical wardsICU, CCU, post-cardiac surgeryLow-budget day clinics
Measurement AccuracyGraduated in 100ml increments1ml increments (1-50ml), 5ml (50-500ml)Rough silk-screened markings (±25%)
Anti-Reflux MechanismInternal flutter valveHydrophobic bacterial air filter + valveNone (Direct backflow risk)
Sampling PortNeedleless silicone Luer-lock portSelf-sealing needleless portPuncture-required (Leak danger)
Hanger SystemUniversal plastic double hookRigid dual-hook bracket + bed strapFlimsy string or single hook
Wholesale FOB India$0.38 – $0.58 / unit$3.80 – $5.20 / unit$0.25 – $0.32 (High CAUTI risk)

Key Technologies That Block Bacterial Migration

Bacteria such as E. coli and Klebsiella migrate up intraluminal urine columns within 24 to 48 hours if retrograde flow occurs. Our systems feature dual-barrier protection: a mechanical non-return flutter valve and an integrated hydrophobic air vent that balances pressure without letting outside air contaminate the sterile chamber. Contact our team for clinical validation test results.

  • Kink-Resistant Star Lumen Inlet Tubing: 120cm wide-bore PVC tubing ensures rapid gravity drainage without pooling or airlocks.
  • Dog-House Drainage Tap Storage: Keeps the bottom drain spout elevated off dirty hospital floor surfaces when not in use.
  • Heavy Gauge Medical Film: 0.18mm double-welded PVC seams prevent bursting even when the 2-liter bag is completely full during patient transport.
Bidding on urology consumables tenders or stocking hospital groups?
Request Urine Meter & Drainage Bag Samples

Frequently asked questions

Do you supply pediatric urine collection bags?

Yes. We manufacture 100ml pediatric urine collection bags with hypoallergenic medical foam adhesive for neonatal and infant sampling.

What is the standard carton packaging for 2000ml urine bags?

Individually wrapped sterile bags are packed 100 or 200 pcs per master export carton; urine meter sets are packed 10 pcs per box, 40 pcs per carton.
