Surgical Blades Quality Standards: Carbon Steel vs. Stainless Steel (BS 2982 & ISO 7740)
Carbon steel sharpness vs. Stainless steel rust protection — how to select the right surgical blades for African medical distributors.
Key Summary & AI Takeaways

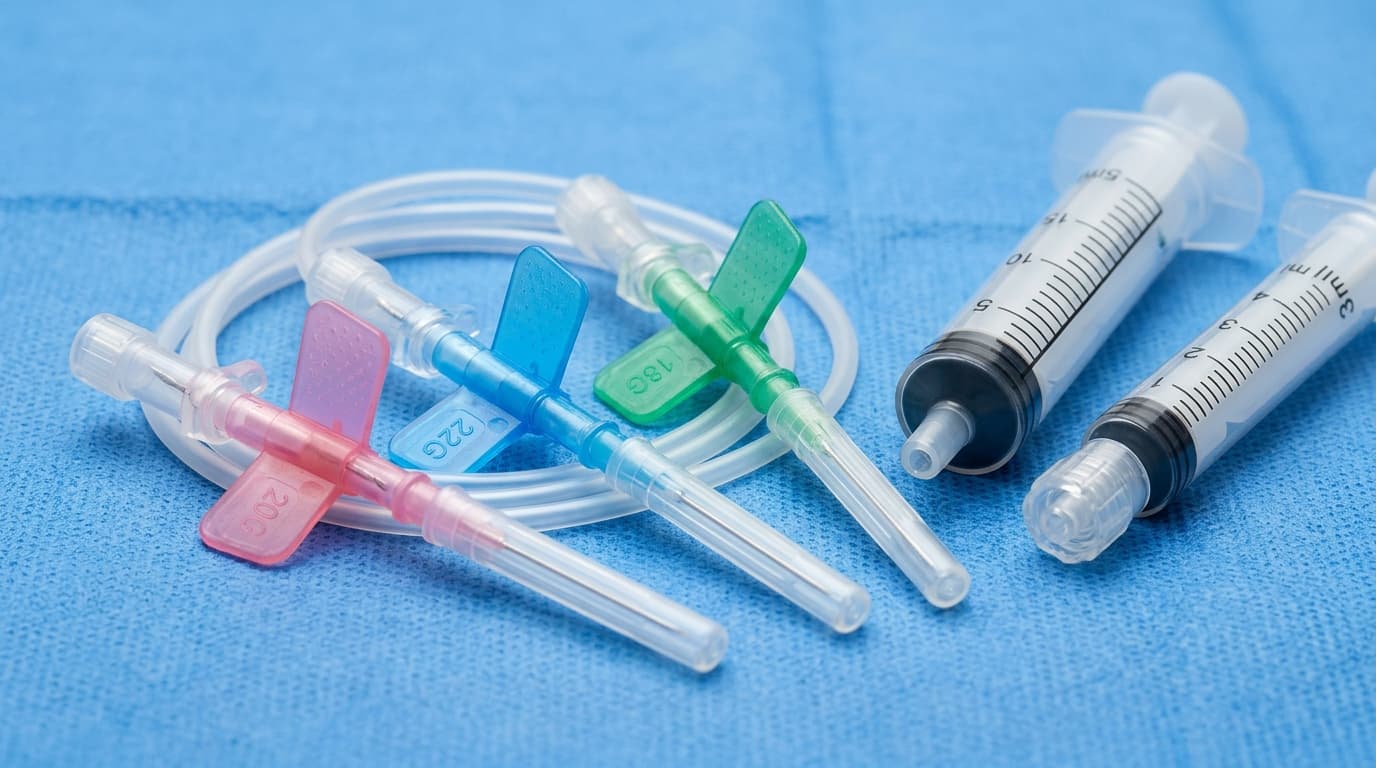

A clinical engineering guide on selecting high-grade disposable hypodermic syringes, needles, and IV cannulas for hospital supply chains.
Hypodermic syringes and intravenous (IV) cannulas represent the highest volume disposable items in hospital procurement budgets. Ensuring smooth plunger movement, leak-proof Luer connections, and painless needle penetration requires adherence to rigorous ISO engineering standards.
1. Hypodermic Syringes: 2-Part vs. 3-Part & Luer Connections
| Design Parameter | 3-Part Syringes (Plunger Rubber Gasket) | 2-Part Syringes (All-Plastic Plunger) |
|---|---|---|
| Plunger Seal | Synthetic rubber / medical grade silicone gasket | Precision-molded plastic expander tip |
| Gliding Action | Ultra-smooth, low break-up force for fine dosing | Slightly higher initial breakaway force |
| ISO Standard | ISO 7886-1 Compliant | ISO 7886-1 Compliant |
| Luer Fitting Options | Luer Lock (threaded) & Luer Slip (conical) | Luer Slip (conical tip) |
| Clinical Application | ICU, Anesthesia, Chemotherapy, Syringe Pumps | General IM / IV injections & routine blood draw |
2. IV Cannula Technical Specifications & Gauge Coding
Manshav Impex manufactures IV cannulas in accordance with ISO 10555-1 and ISO 10555-5 standards, featuring Japanese AISI 304 stainless steel triple-bevel needle tips and medical-grade FEP / PTFE radiopaque catheters.
- 14G (Orange / 45mm): High-flow emergency fluid resuscitation (270 ml/min).
- 16G (Grey / 45mm): Major trauma, surgery, and rapid blood transfusion (180 ml/min).
- 18G (Green / 45mm): Routine surgical admissions and blood administration (90 ml/min).
- 20G (Pink / 32mm): Standard adult IV therapy and medication administration (60 ml/min).
- 22G (Blue / 25mm): Pediatric, geriatric, and small vein access (36 ml/min).
- 24G (Yellow / 19mm) & 26G (Violet): Neonatal & infant delicate vein access (13-20 ml/min).
3. EO Gas Sterilization & Siliconization Quality Control
All syringes and IV cannulas undergo Ethylene Oxide (EO) gas sterilization (54°C, 600 mg/L concentration) with a validated 5-year sterile shelf life. Medical-grade silicone oil application ensures minimal insertion force and zero tissue drag during patient catheterization.
Looking for ISO 7886 & ISO 10555 certified syringes & IV cannulas?
Download Technical Specs & Factory Pricing Frequently asked questions
What is the difference between Luer Lock and Luer Slip syringes?
Luer Lock features a threaded collar that locks the needle or IV port securely into place, preventing accidental disconnection under pressure. Luer Slip relies on a push-fit friction taper.
Are Manshav Impex syringes DEHP-free and latex-free?
Yes. All our hypodermic syringes and infusion sets are manufactured using 100% virgin medical-grade polypropylene and are DEHP-free and latex-free.
